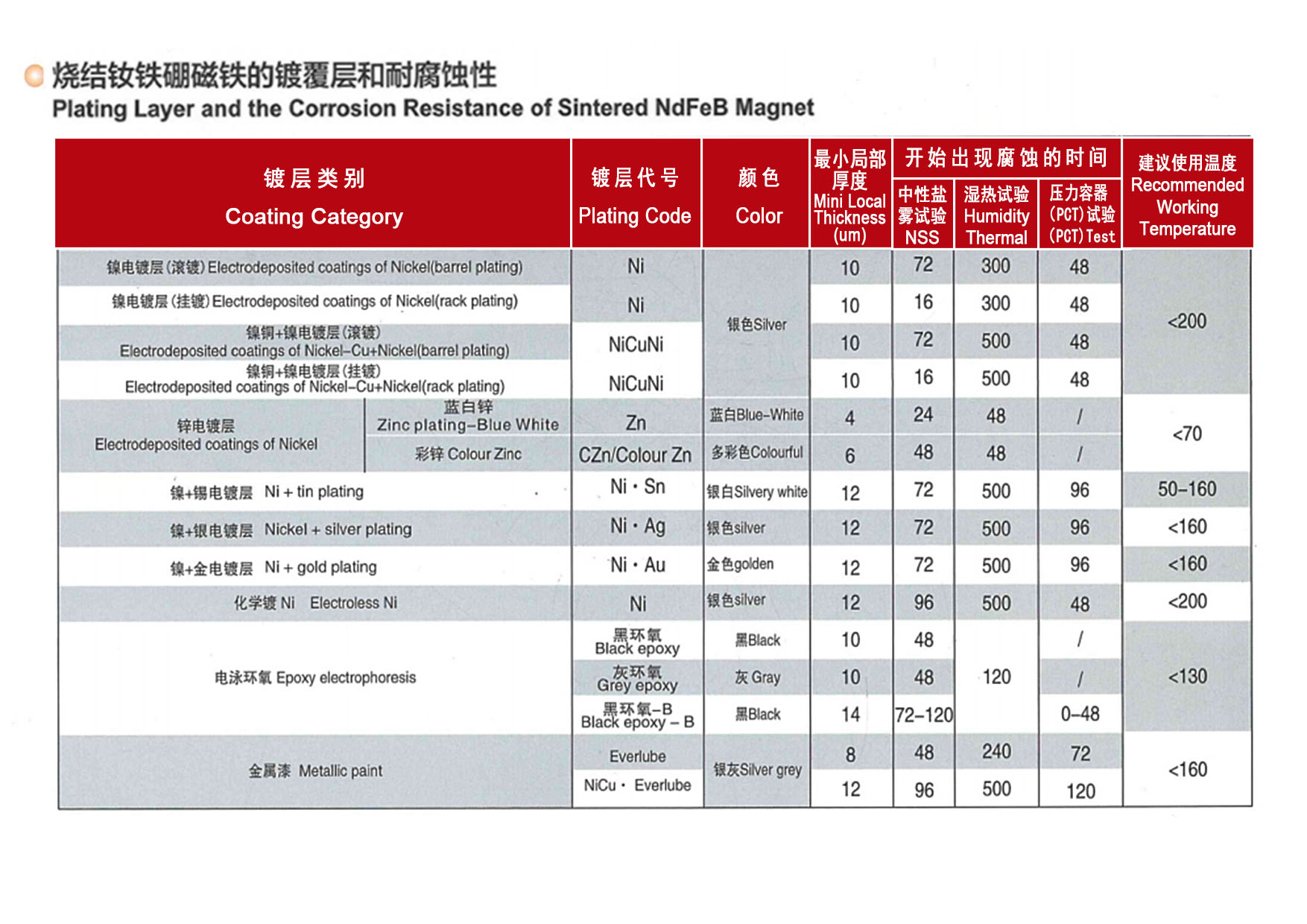

镀覆层和耐腐蚀性

※  注

        1：最小局部厚度是指在主要表面上能被直径为20mm球接触的部分的镀层厚度；组合镀层的最小局部厚度指组合后的各分镀层的总厚度。

        2：镀覆层的中性盐雾试验、湿热试验、压力锅（PCT）试验等的指标是指对一般规格（如Φ10mm×3mm、10mm×10mm×4mm）的方块、圆片磁体进行涂覆后的结果。当磁体的规格有变化时（如单重大于20g或者单重小于2g或者瓦型等其他形状或异形磁钢等），试验指标也将相应的调整，特殊要求可由供需双方共同商定。

※  Note

        1:  the minimum local thickness refers to the main surface can be 20 mm diameter ball contact part of the coating thickness ; Composite coating after the minimum local thickness refers to the combination of the total thickness of coating.

        2:  the plating layer of the neutral salt spray test, damp heat test and pressure cooker (PCT) test index refers to the general specification (such as Φ10 mm ×3 mm, 10 mm × 10 mm ×4 mm) square, round piece of magnet results after coating . When a change in the specification of magnet (such as a single major in 20 g or single weighs less than 2 g or other shapes or alien magnetic steel tile type, etc, etc.), test index will also be a corresponding adjustment, special requirements can be agreed upon by both parties of supply and demand.
